handheld mobile integrated heating series

handheld mobile integrated heating series

Brand:hairuituo| model:HT/HTG | work power:380V 50/60HZ | output power:25KW (可订制) | outpu current: | frequency:30-80KHZ | units: | View:

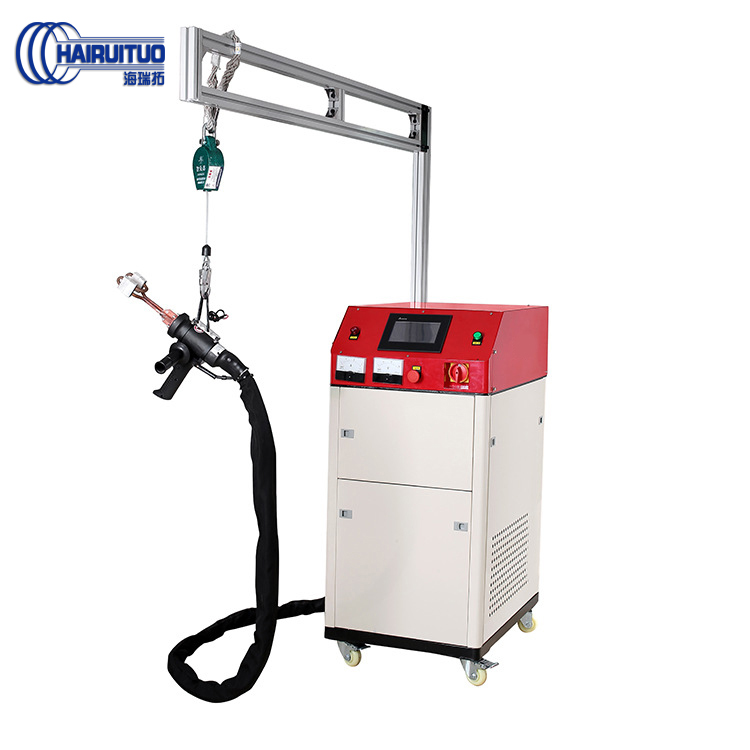

Handheld mobile integrated heating series
Detailed description

Handheld mobile integrated heating series
Handheld mobile integrated heating series




HITO's hand-held transformer is small in size and light in weight. The unique waterproof technology and materials make the handheld transformer not afraid of water, weak acid resistance and high temperature resistance. After power-on, the power can be precisely adjusted through the host panel. The light and stable operation handle and detachable The slings enhance the convenience of the operator. Flexible output connection cable for easy, smart access to work, easy to operate, and more efficient

Convenient, fast and precise

One-button type: Use PLC interface to display current, voltage, waterway and fault through screen display Operation becomes easier
Safe and environmentally friendly: No flame, no gas, no heat radiation; Make the operator more comfortable and environmentally friendly
Mobile: Small size, no footprint, mobile and portable to provide more flexibility for heating tasks
Outdoor work: 220V work, solve outdoor work and find troubles with three-phase electricity

Model    HT-SC25
Power supply    25KW
Frequency    30-100KHZ
Output current    200-1200A
Pump power    2.85KW
Cooling capacity    8.39KW/hr
Compressor    2.2KW
Pump head    22m
Dimension(mm)    940*555*1060



Application range
1, transformer joint welding
2, hard alloy sawtooth welding
3, surface heating coating and other on-site heating applications
4, copper tube, stainless steel tube and tube welding, tube and shell welding
5, copper pipe welding of air conditioning industry, refrigerator industry, bathroom industry, etc.
