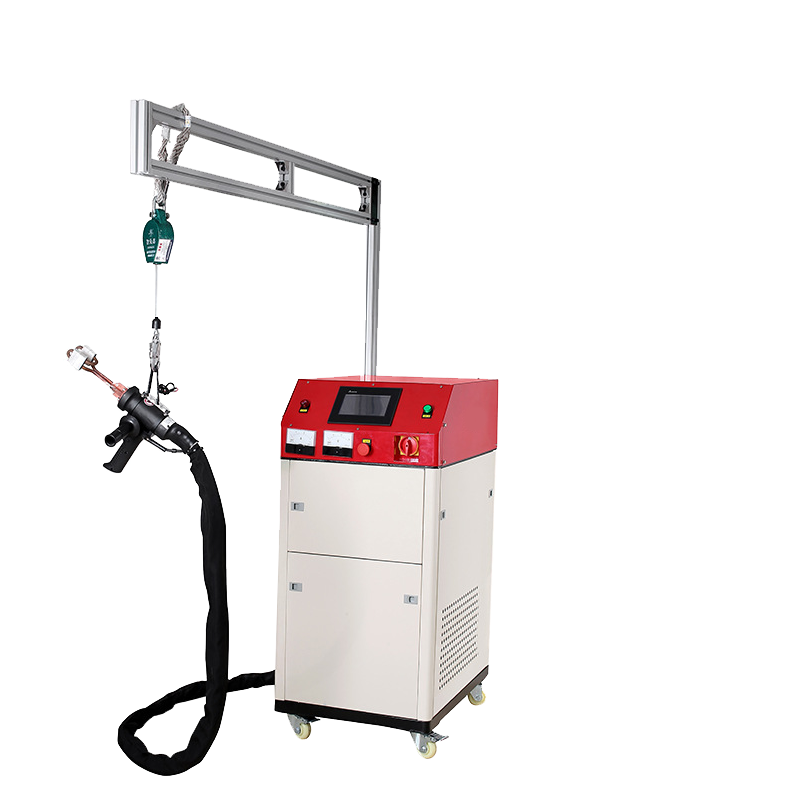

Handheld high frequency welding machine

One-button type: Use PLC interface to display current, voltage, waterway and fault through screen display Operation becomes easier
Safe and environmentally friendly: No flame, no gas, no heat radiation; Make the operator more comfortable and environmentally friendly
Mobile: Small size, no footprint, mobile and portable to provide more flexibility for heating tasks
Outdoor work: 220V work, solve outdoor work and find troubles with three-phase electricity

Model	HT-SC25
Power supply	25KW
Frequency	30-100KHZ
Output current	200-1200A
Pump power	2.85KW
Cooling capacity	8.39KW/hr
Compressor	2.2KW
Pump head	22m
Dimension（mm)	940*555*1060





Application range
1, transformer joint welding
2, hard alloy sawtooth welding
3, surface heating coating and other on-site heating applications
4, copper tube, stainless steel tube and tube welding, tube and shell welding
5, copper pipe welding of air conditioning industry, refrigerator industry, bathroom industry, etc.
